Production information
* Cast iron H-shape burner, each 30,000 BTU/hr for better heat distribution
* One control every 12"
* Standby pilot for easy start
* ¾" thickness griddle plate
* Stainless steel adjustable heavy duty legs
* Zinc alloy knob with chrome coating
* Oil collector at the bottom
* Easy conversion from natural gas to Propane or vice versa
* Stainless steel in the front and sides
* Available in 24", 36", 48" and 60" width
* Manual control

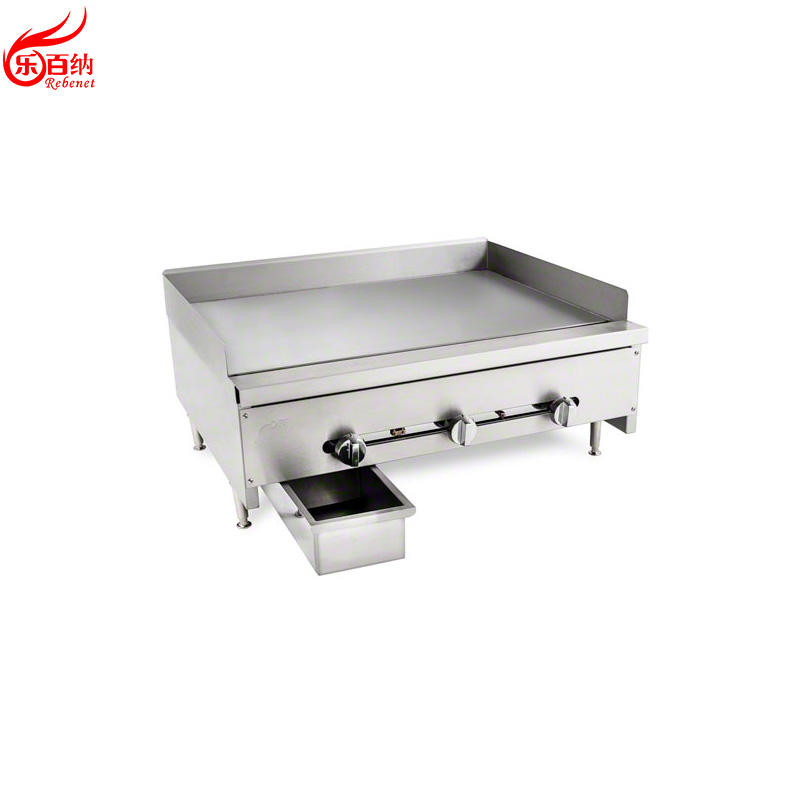

GHP-4W
| Model | Description | BTU/HR | Porduct (W x D x H) | Packing (W x D x H) | NW | GW |
| CG-24 | Gas Manual Griddle | 60,000 | 610 x 840 x 340 mm 24 x 30 x 13.4 inch | 700 x 920 x 500 mm 27.6 x 36.2 x 19.7 inch | 90 kg 198 lbs | 110 kg 242 lbs |
| CG-36 | Gas Manual Griddle | 90,000 | 915 x 840 x 340 mm 36 x 30 x 13.4 inch | 1020 x 920 x 500 mm 40.2 x 36.2 x 19.7 inch | 118 kg 260 lbs | 118 kg 260 lbs |
| CG-48 | Gas Manual Griddle | 120,000 | 1220 x 840 x 340 mm 48 x 30 x 13.4 inch | 1340 x 920 x 500 mm 52.8 x 36.2 x 19.7 inch | 168 kg 370 lbs | 195 kg 429 lbs |
| CG-60 | Gas Manual Griddle | 150,000 | 1525 x 840 x 340 mm 60 x 30 x 13.4 inch | 1640 x 920 x 500 mm 64.6 x 36.2 x 19.7 inch | 231 kg 508 lbs | 264 kg 581 lbs |
