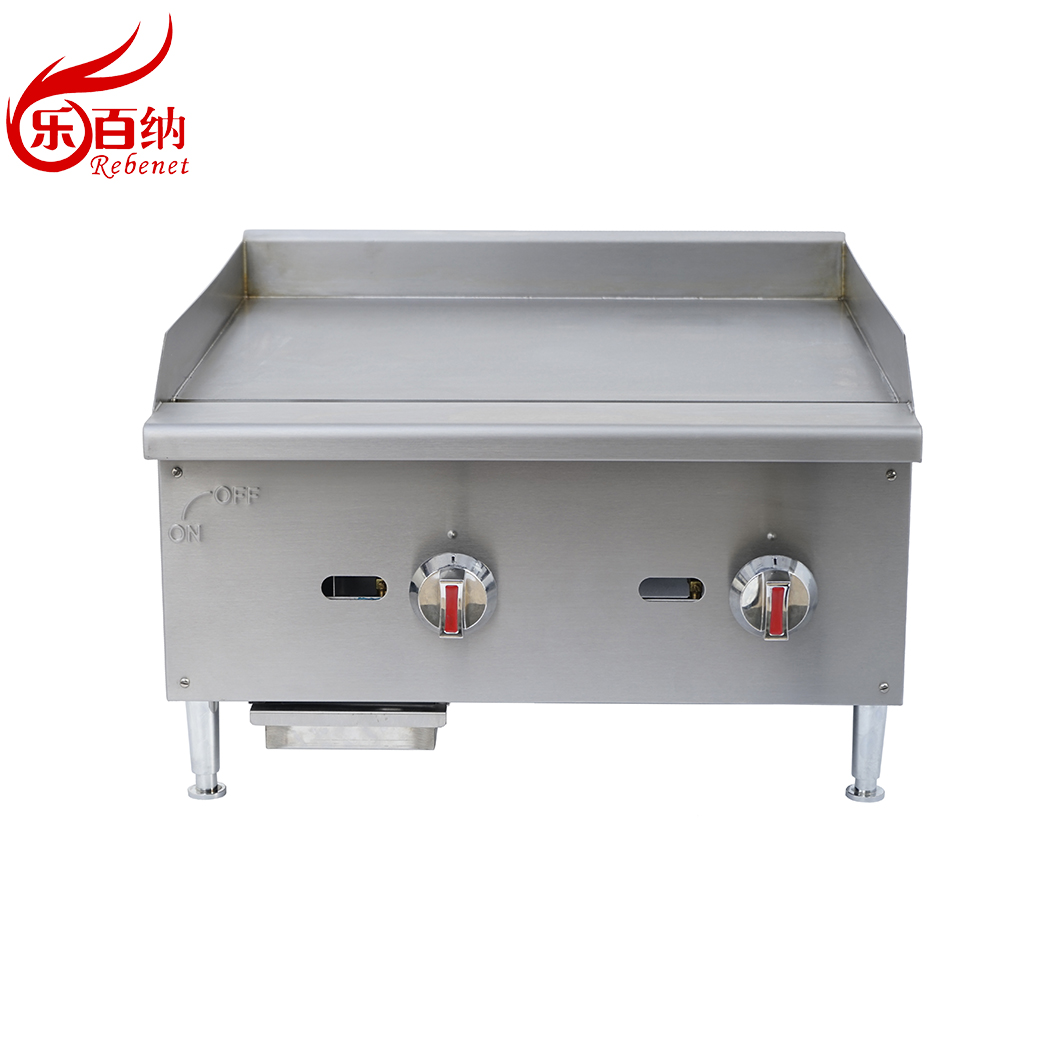

Gas Manual Griddle
* U-shape steel burner, each 30,000 BTU/hr
* To be controlled every 12" width
* Standby pilot for easy start
* Stainless steel adjustable heavy duty legs
* Zinc alloy knob with chrome coating
* Large oil collector at the bottom
* Easy conversion from natural gas to Propane or vice versa
* Stainless steel in the front, and galvanized sides and back
* Available in 16", 24", 36", 48" and 60" size
* 5/8" thickness griddle plate
* Manual control
| Model | Description | Total input (btu/hr) | Product (W x D x H) | Packing (W x D x H) | NW | GW |
| EGG16S | Gas Griddle | 30,000 | 404 x 640 x 390 mm 15.9 x 25.2 x 15.4 inch | 490 x 780 x 500 mm 19.3 x 30.7 x 19.7 inch | 41 kg 90 lbs | 51 kg 128 lbs |
| EGG24S | Gas Griddle | 60,000 | 604 x 640 x 390 mm 23.8 x 25.2 x 15.4 inch | 760 x 780 x 500 mm 29.9 x 30.7 x 19.7 inch | 52 kg 114 lbs | 65 kg 143 lbs |
| EGG36S | Gas Griddle | 90,000 | 904 x 640 x 390 mm 35.6 x 25.2 x 15.4 inch | 980 x 780 x 500 mm 38. 6x 30.7 x 19.7 inch | 80 kg 176 lbs | 95 kg 209 lbs |
| EGG48S | Gas Griddle | 120,000 | 1204 x 640 x 390 mm 47.4 x 25.2 x 15.4 inch | 1280 x 780 x 500 mm 50.4 x 30.7 x 196.7 inch | 135 kg 297 lbs | 170 kg 374 lbs |
| EGG60S | Gas Griddle | 150,000 | 1504 x 640 x 390 mm 59.2 x 25.2 x 15.4 inch | 1610 x 780 x 500 mm 63.4 x 30.7 x 196.7 inch | 140 kg 308 lbs | 180 kg 396 lbs |
