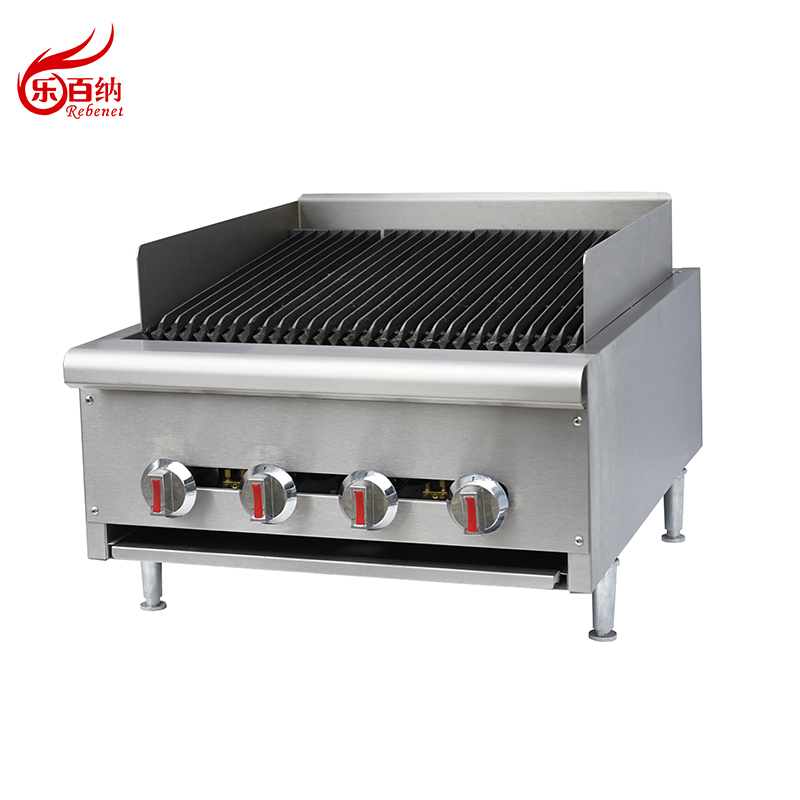

Gas Radiant Charbroiler
* Cast iron bar burner, each 20,000 BTU/hr
* One control every 6"
* Standby pilot for easy start
* Cast iron radiant cover to hold heat and spread heat more evenly
* Stainless steel adjustable heavy duty legs
* Zinc alloy knob with chrome coating
* Oil collector at the bottom
* Easy conversion from natural gas to Propane or vice versa
* Stainless steel in the front and sides
* Available in 14",24",36",48" and 60" width
| Model | Description | Total input (btu/hr) | Product (W x D x H) | Product (W x D x H) | NW | GW |
| CB-14 | Gas radiant charbroiler | 40,000 | 356 x 774 x 460 mm 14 x 30.5 x 18.1 inch | 480 x 940 x 520 mm 19 x 37 x 20.5 inch | 56 kg 123 lbs | 71 kg 156 lbs |
| CB-24 | Gas radiant charbroiler | 80,000 | 610 x 774 x 460 mm 24 x 30.5 x 18.1 inch | 770 x 940 x 520 mm 30 x 37 x 20.5 inch | 94 kg 207 lbs | 114 kg 251 lbs |
| CB-36 | Gas radiant charbroiler | 120,000 | 915 x 774 x 460 mm 36 x 30.5 x 18.1 inch | 1070 x 940 x 520 mm 42.1 x 37 x 20.5 inch | 134 kg 295 lbs | 159 kg 350 lbs |
| CB-48 | Gas radiant charbroiler | 160,000 | 1220 x 774 x 460 mm 48 x 30.5 x 18.1 inch | 1360 x 940 x 520 mm 53.5 x 37 x 20.5 inch | 183 kg 403 lbs | 213 kg 469 lbs |
| CB-60 | Gas radiant charbroiler | 200,000 | 1525 x 774 x 460 mm 60 x 30.5 x 18.1 inch | 1640 x 940 x 520 mm 64.6 x 37 x 20.5 inch | 231 kg 508 lbs | 264 kg 581 lbs |
