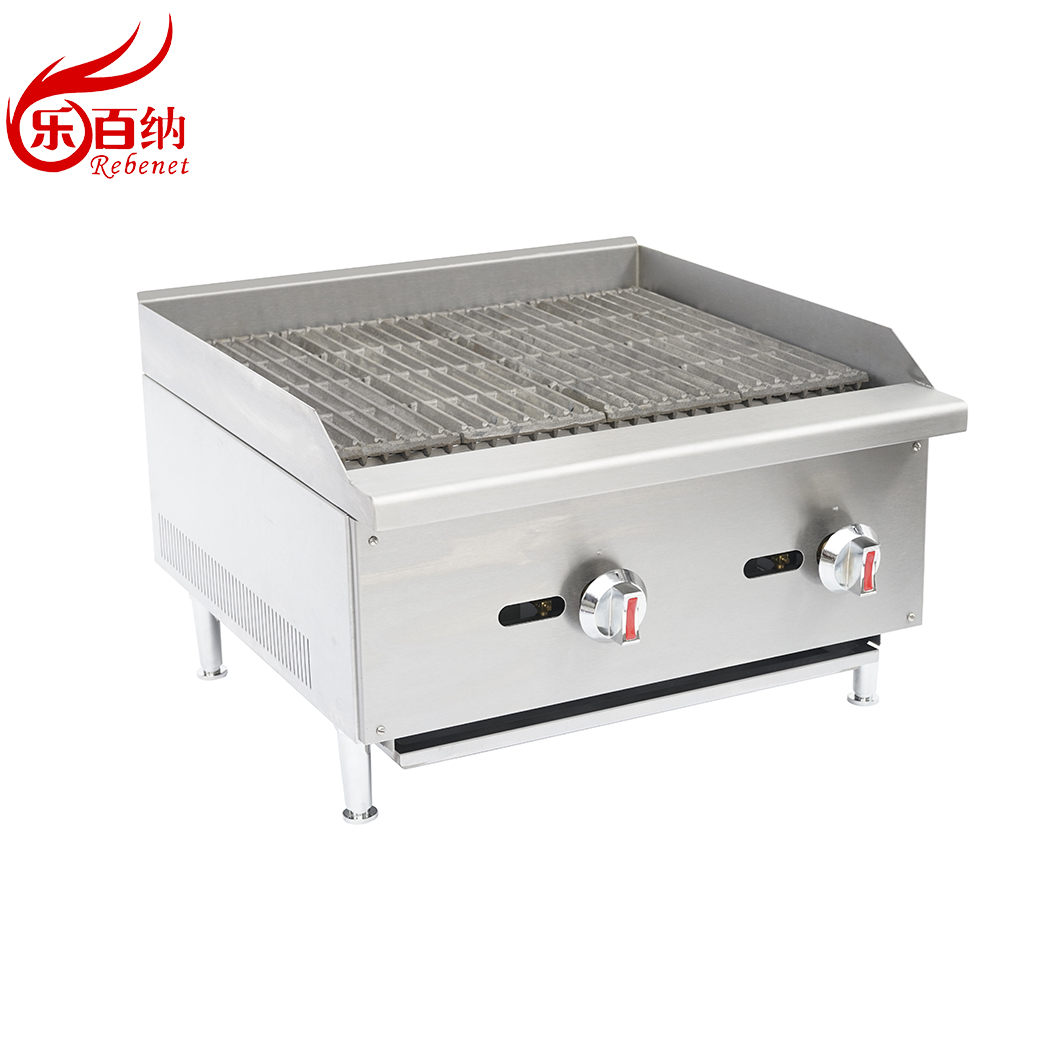

Gas Radiant Charbroiler
* U-shape steel burner, each 30,000 BTU/hr
* To be controlled every 12" width
* Standby pilot for easy start
* Stainless steel adjustable heavy duty legs
* Zinc alloy knob with chrome coating
* Large oil collector at the bottom
* Easy conversion from natural gas to Propane or vice versa
* Stainless steel in the front, and galvanized sides and back
* Available in 16", 24", 36", 48" and 60" size
* Cast iron grate
* Manual control
| Model | Description | Total input (btu/hr) | Product (W x D x H) | Product (W x D x H) | NW | GW |
| ECB16S | Gas radiant charbroiler | 30,000 | 404 x 640 x 390 mm 15.9 x 25.2 x 15.4 inch | 490 x 780 x 500 mm 19.3 x 30.7 x 19.7 inch | 49 kg 108 lbs | 57 kg 125 lbs |
| ECB24S | Gas radiant charbroiler | 60,000 | 604 x 640 x 390 mm 23.8 x 25.2 x 15.4 inch | 760 x 780 x 500 mm 29.9 x 30.7 x 19.7 inch | 54 kg 119 lbs | 70 kg 154 lbs |
| ECB36S | Gas radiant charbroiler | 90,000 | 904 x 640 x 390 mm 35.6 x 25.2 x 15.4 inch | 980 x 780 x 500 mm 38.6 x 30.7 x 19.7 inch | 74 kg 163 lbs | 95 kg 209 lbs |
| ECB48S | Gas radiant charbroiler | 120,000 | 1204 x 640 x 390 mm 47.4 x 25.2 x 15.4 inch | 1280 x 780 x 500 mm 50.4 x 30.7 x 19.7 inch | 98 kg 216 lbs | 135 kg 297 lbs |
| ECB60S | Gas radiant charbroiler | 150,000 | 1504 x 640 x 390 mm 59.2 x 25.2 x 15.4 inch | 1610 x 780 x 500 mm 63.4 x 30.7 x 19.7 inch | 122 kg 268 lbs | 167 kg 367 lbs |
